Which regulates the design and construction of pressure vessels?

Which regulates the design and construction of pressure vessels?

The ASME Boiler and Pressure Vessel Code (BPVC) is the standard that regulates the design and construction of boilers and pressure vessels.

What is ASME Section VIII?

What Is ASME Section VIII? ASME Section VIII is dedicated to giving detailed requirements for the design, fabrication, inspection, certification, and testing of both unfired and fired pressure vessels, especially those that operate at pressures exceeding 15 psi.

How often does a pressure vessel need to be inspected?

every five years
As a general rule of thumb, pressure vessels should be inspected at least once every five years. An inspection should also be conducted once the vessel is installed, prior to it being put into service.

Do pressure vessels need to be certified?

Pressure vessel fabricators wishing to repair pressure vessels must obtain a certificate of authorization as an approved repairer from the National Board of Boiler and Pressure Vessel Inspectors. This certificate authorizes the use of the R stamp, which must be stamped on the pressure vessel nameplate.

What is an API 510 Inspector?

Certified API 510 Pressure Vessel inspectors must have a broad knowledge base relating to maintenance, inspection, repair, and alteration of pressure vessels. The API 510 examination is designed to determine if individuals have such knowledge.

Is PD 5500 still valid?

PD 5500 was formerly a widely used British Standard known as BS 5500, but was withdrawn from the list of British Standards because it was not harmonized with the European Pressure Equipment Directive (97/23/EC). It is currently published as a “Published Document” (PD) by the British Standards Institution.

What is ASME Section VIII Division 3?

ASME B&PV Code, Section VIII, Division 3 contains mandatory requirements, specific prohibitions, and non-mandatory guidance for the design, materials, fabrication, examination, inspection, testing, and certification of high pressure vessels and their associated pressure relief devices.

What is the difference between ASME Section VIII Div 1 and Div 2?

ASME Section VIII, Division 2 is meant for purpose-specific vessels with an outlined fixed location. Another major difference between Division 1 and Division 2 lies in failure theory. While Division 1 is predicated on normal stress theory, Division 2 is predicated on maximum distortion energy (Von Mises).

Do all pressure vessels need to be inspected?

There is a legal requirement for thorough examination of pressure vessels and receivers that contain steam, compressed air and refrigerants. Any pressure vessel containing compressed gas over 250 bar / litres capacity requires inspection.

How do you service a pressure vessel?

Servicing an Expansion Vessel

1. 1, Inspect. Perform a visual inspection of the Expansion Vessel looking for any signs of damage or corrosion.
2. 2, Disconnect. To correctly test an Expansion Vessel you will need to isolate and remove the Expansion Vessel from the system.
3. 3, Test.
4. 4, Charge.
5. 5, Reconnect.

What does OSHA consider high pressure?

High Pressure: Gas pressure greater than 20 MPa gauge (3000 psig) and liquid pressure greater than 35 MPa gauge (5000 psig).

What is an API 653 Inspector?

The API 653 Aboveground Storage Tank Inspector must have a broad knowledge base relating to tank inspection and repair of aboveground storage tanks, and will satisfy the minimum qualifications specified in API Standard 653, Tank Inspection, Repair, Alteration, and Reconstruction.

Is there a legal requirement for pressure vessel inspection?

Pressure Vessel and Pressure System Inspection. There is a legal requirement for thorough examination of pressure vessels and receivers that contain steam, compressed air and refrigerants. Any pressure vessel containing compressed gas over 250 bar / litres capacity requires inspection.

Are the simple pressure vessels (safety) regulations 1991 still in effect?

The Simple Pressure Vessels (Safety) Regulations 1991 were revoked on 8 December 2016 but continue to apply to relevant products placed on the market prior to this date. Updated to reflect amendments to the regulations at the end of the transition period.

What regulations apply to pressure equipment and pressure systems?

The main regulations covering pressure equipment and pressure systems are the Pressure Equipment Regulations 1999 and the Pressure Systems Safety Regulations 2000. Employers have a further duty to consult any safety or employee representatives on health and safety matters. Where none are appointed, employers should consult the workforce direct.

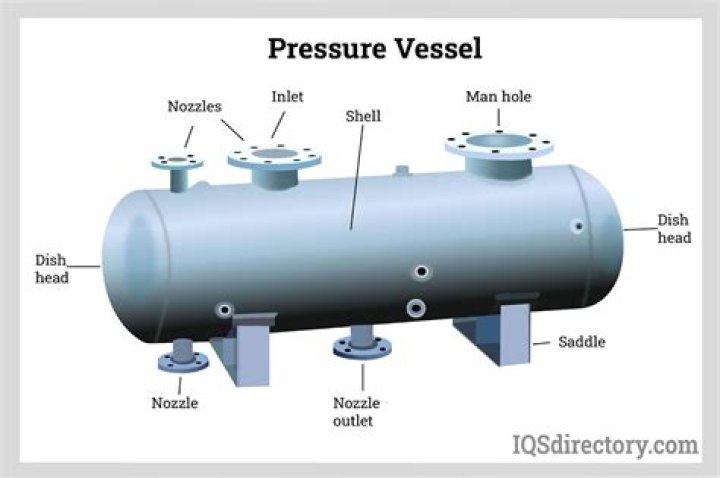

What is a pressure vessel?

Overview Generally, a pressure vessel is a storage tank or vessel that has been designed to operate at pressures above 15 p.s.i.g. Recent inspections of pressure vessels have shown that there are a considerable number of cracked and damaged vessels in workplaces. Cracked and damaged vessels can result in leakage or rupture failures.
