Which are minor losses in pipes?

Which are minor losses in pipes?

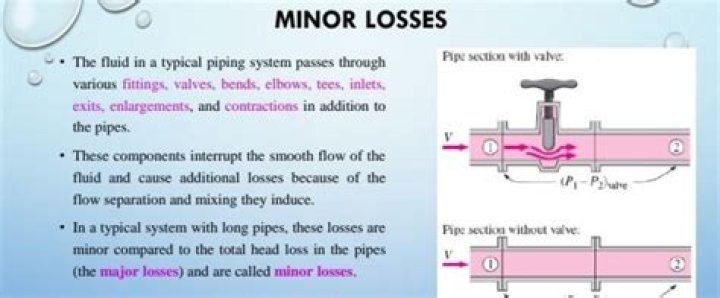

Following are some minor losses which occur in pipe flow:

• Loss of energy due to sudden enlargement.
• Loss of energy due to sudden contraction.
• Loss of energy at the entrance of the pipe.
• Loss of energy at the exit from pipe.
• Loss of energy in Bends and Pipe Fittings.

What are major and minor losses in pipes?

“Major” losses occur due to friction within a pipe, and “minor” losses occur at a change of section, valve, bend or other interruption.

What causes minor losses in pipes?

Minor losses are local energy losses caused by the disruption of the flow due to the installation of appurtenances, such as valves, bends, and other fittings [5]. For pipelines of large lengths the energy losses are mostly caused by friction effect and the energy losses caused by fittings are minimal.

What are different types of losses in pipes?

Major and minor loss in pipe, tubes and duct systems.

• Major Head Loss – head loss or pressure loss – due to friction in pipes and ducts.
• Minor Head Loss – head loss or pressure loss – due to components as valves, bends, tees and the like in the pipe or duct system.

What are types of minor losses?

There are three types of forces that contribute to the total head in a pipe, which are elevation head, pressure head, and velocity head. Minor losses are directly related to the velocity head of a pipe, meaning that the higher the velocity head there is, the greater the losses will be.

Why are minor losses called minor losses?

The losses that occur in pipelines due to bends, elbows, joints, valves, etc. are sometimes called minor losses. This is a misnomer because in many cases these losses are more important than the losses due to pipe friction, considered in the preceding section.

How are minor losses calculated?

Minor Loss Equation: g = acceleration due to gravity = 32.174 ft/s2 = 9.806 m/s2. hm = head loss due to a fitting and has units of ft or m of fluid. It is the energy loss due to a fitting per unit weight of fluid.

Why is minor loss important?

Minor losses in pipe flow are a major part in calculating the flow, pressure, or energy reduction in piping systems. Just as certain aspects of the system can increase the fluids energy, there are components of the system that act against the fluid and reduce its energy, velocity, or momentum.

What are minor losses briefly explain?

Minor losses are directly related to the velocity head of a pipe, meaning that the higher the velocity head there is, the greater the losses will be. Units for minor losses are in length, such as feet or meters, the same as any of the three types of head.

What is minor loss in fluid?

The losses that occur in pipelines due to bends, elbows, joints, valves, etc. are sometimes called minor losses. It is the energy loss due to a fitting per unit weight of fluid.
