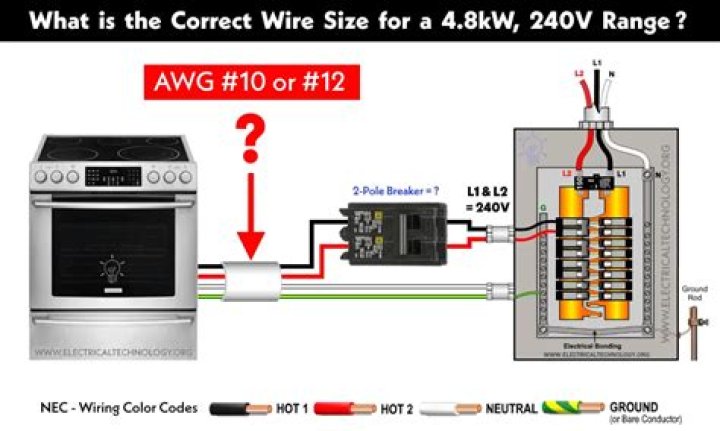

What wiring is required for an electric range?

The power demand of ranges varies depending on the rating of the appliance, but in most cases, a 50-amp 240-volt circuit is required, wired with #6-gauge wire. Smaller ranges may require a 40-amp circuit, wired with #8-gauge wire.

What is a pigtail on a stove?

In electrical terms, a “pigtail” cord is an electrical cord that has a plug only at one end. The power cord to an electric stove has a male plug at the end where you connect it to the receptacle, the other end is wired directly to the terminals on the stove.

How do you wire an electric oven?

Connect the cable to the back of your cooker

Locate the terminal outlet box on the back of your appliance and unscrew the plate.
Connect the live (brown), neutral (blue), and earth (green-yellow) wires into their appropriate slots (neutral goes to the left, live – to the right, earth – to the centre).

Why do electric ranges not come with power cords?

Unlike washing machines and refrigerators, there is not a standard electric code or outlet type for ranges. Range manufacturers choose not to include a power cord with the range because they do not know for sure which type of cord you will need based on the type of outlet and amperage needed.

Do electric ranges need 220?

When it comes to electricity usage, an electric stove is a powerhouse. Consequently, you can’t just plug them into the standard 110-volt outlets that are most common in the United States—most stoves require a special 220-volt outlet instead.

Can you use a 3-wire on a 4 wire range?

In an existing installation (such as an older home built in the 1950s), it is considered Code-compliant for the kitchen range or the clothes dryer to be installed using a 3-wire cord and plug. The 4th wire in that cord and plug configuration is an equipment grounding conductor. …

Can I use a 4 wire cord on a 3 wire stove?

When installing a four-prong cord, you remove the ground strap from the neutral terminal if the range was previously configured for a three-prong cord. You can leave the strap secured under the ground screw so it doesn’t get lost, but it must not connect to the neutral terminal.

Can I use a 4-prong outlet with 3 wires?

If one is under the current US National Electrical Code, one may NOT replace a 4-prong grounding receptacle with a 3 prong non-grounding receptacle legally.

Does an electric oven need its own circuit?

Electrical ovens are a voltage powerhouse. They require a dedicated circuit with a voltage of 240V. Additionally, they require a unique 50A receptacle.

Does an electric range need a special plug?

Do new electric dryers come with power cords?

Dryer does NOT come with power cord… because house electric OUTLET shape and local electric codes vary: Power cords are sold separately from dryers and ranges because the electrical codes and outlets for these specific appliances vary to a high degree. There is no standard like there is for washers and refrigerators.

When do you need to use a pigtail wire?

Pigtail wiring is basically used when you have one than just one wire that needs to be connected to a component or device. Basically, a wire is used to connect several wires together in order to keep the number of wires down, a clean area, and allow everything to be hooked up efficiently.

What is the wiring diagram for a pigtail trailer?

Here’s the diagram for 7-pin connector. White Pin for the floor. Brown Pin for unwanted markers, tail lamps, and running lights. Yellow Pin for left brake light and left turn mark. Green Pin Yellow Pin for appropriate brake light and right turn mark. Blue Pin for electric brakes. Red 12 volt auxiliary power. Purple for backup lights.

Which is better pigtail junction or wire nut junction?

The pigtail method transfers the connection point from the receptacle to a wire nut. So instead of the feed-through current going through the receptacle, it goes through the wire nut. Which junction is better? It’s hard to say; it depends on the skill of the installer.

Where does the feed through go in a pigtail?

The pigtail method transfers the connection point from the receptacle to a wire nut. So instead of the feed-through current going through the receptacle, it goes through the wire nut.

Where do the supply wires go in a pigtail?

My electrician prefers to run the supply wires, and also the wires to the downstream receptacles, to the screw terminals at the back of the receptacle. When receptacles are wired his way, with the feed-through current going through the receptacle, can downstream electrical loads overheat the receptacle?

How to wire a circuit for a range?

How to Wire an Electric Range Circuit: Electric Circuit Requirements for a Kitchen Range. [ad#block] Electrical Question: How should I wire my electric range? I am considering replacing my gas range with an electric stove or electric range. In talking with appliance dealers, I am told that a stove uses a 240 volt, 30 amp circuit.
