What size is 10 an fitting?
Emma Horne
Published Apr 08, 2026
What size is 10 an fitting?
Plumbing Basics – AN Fittings & Hoses
| AN Size | Hose i.d. – Tube o.d. | SAE Thread Size |
|---|---|---|
| -8 | 1/2 in. | 3/4 in.-16 |
| -10 | 5/8 in. | 7/8 in.-14 |
| -12 | 3/4 in. | 1 1/16 in.-12 |
| -16 | 1 in. | 1 5/16 in.-12 |
How do you tell what size an AN fitting is?

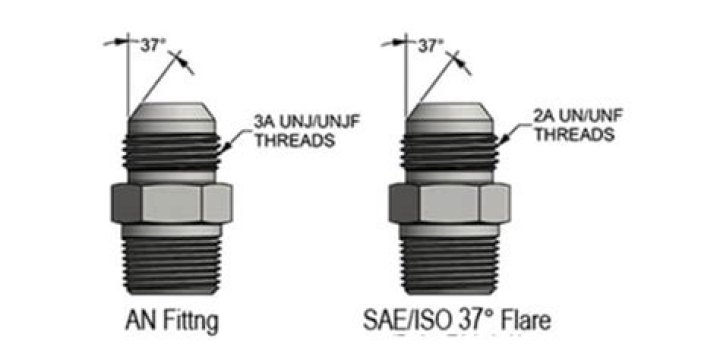

As mentioned earlier, you can always identify AN fittings based on the male thread size (outside diameter). These sizes are constant regardless of brand, hose type, or fitting configuration. If your fitting has a convex 37 degree flare at the end, the threads will tell you the AN size (and vice-versa).
What thread size is an?
“AN” SIZES
| AN Size | Metal Tube O.D. | Thread size |
|---|---|---|
| 10 | 5/8 | 7/8-14 SAE |
| 12 | 3/4 | 1-1/16-12 SAE |
| 16 | 1 | 1-5/16-12 SAE |
| 20 | 1-1/4 | 1/5/8-12 SAE |
What is the ID of 10AN hose?
AN Fitting and Hose Sizes
| Male Thread Size | AN Size* | Hose ID** |
|---|---|---|
| 7/16-20 | 4AN | 0.22″ |
| 9/16-18 | 6AN | 0.34″ |
| 3/4-16 | 8AN | 0.44″ |
| 7/8-14 | 10AN | 0.56″ |
What is size 10 in SA?
ADULT SIZE GUIDE
| Europe | UK / SA | US |
|---|---|---|
| 40 | 6.5 | 9 |
| 41 | 7 | 9.5 |
| 42 | 7.5 | 10 |
| 43 | 8 | 10.5 |
What size wrench fits a 10 AN fitting?
Stainless Tubing AN Equivalent
| Stainless Tubing AN Equivalent All dimensions are in inches unless otherwise noted. | ||
|---|---|---|
| AN | Tube Size OD | Wrench Size |
| -10 | 5/8″ | 1″ |
| -12 | 3/4″ | 1 1/4″ |
| -16 | 1″ | 1 1/2″ |
What size is SAE 10?
SAE 45° Flare (SAE J512)
| Inch size | Dash size | Male Thread O.D. (in) |
|---|---|---|
| 3⁄8 | -6 | 5⁄8 |
| 1⁄2 | -8 | 3⁄4 |
| 5⁄8 | -10 | 7⁄8 |
| 3⁄4 | -12 | 11⁄16 |
What is M10 thread size?
| Tap size | Basic major dia (mm) | Basic major dia (inch) |
|---|---|---|
| M8 x 1 | 8mm | .3150 |
| M10 x 1.5 | 10mm | .3937 |
| M10 x 1.25 | 10mm | .3937 |
| M12 x 1.75 | 12mm | .4724 |
What size is 2an?
Russell Performance Technical Support
| AN Size | Metal Tube O.D. | Thread Size |
|---|---|---|
| -10 AN | 5/8″ | 7/8″ – 14 SAE |
| -12 AN | 3/4″ | 1-1/16″ – 12 SAE |
| -16 AN | 1″ | 1-5/16″ – 12 SAE |
| -20 AN | 1-1/4″ | 1-5/8″ – 12 SAE |
What size is AN6 fitting?
Where every dash number is 1/16 of an inch an AN6 fitting would be equivalent to 6/16″ or 3/8″ Fitting size.
What size is us5 in South Africa?
Shoe Size Chart
| FOOT LENGTH recommendations in cm | 23.5 – 24 | 24.2– 24.6 |
|---|---|---|
| UK / SOUTH AFRICA | 4 | 5 |
| US | 6 | 7 |
| EU | 37 | 38 |
What does dash size mean on a hose?
For example, nylon tubing is very flexible, and flexible metal hoses are (relatively) very rigid. So remember: dash size is the size of hose, tube or fittings expressed in sixteenths of an inch. Hoses are measured by inside diameter, and tubes are measured in outside diameter.
What is the OD of a -10 fitting?
Therefore, a -10 fitting was originally designed to fit an solid tube with an OD of 10 * 1/16″ = ⅝″ (~16mm).
What does -10 mean on a hose?
In another example, a -10 tube would indicate a tube with an outside diameter of 10/16″, or 5/8″. Fittings are a little different and slightly more complex. In the part number 10343-8-6, for example, -8 is the size of the fitting end connection, and -6 is the hose size.
What do the parts numbers mean for the different types of fittings?
Fittings are a little different and slightly more complex. In the part number 10343-8-6, for example, -8 is the size of the fitting end connection, and -6 is the hose size. Did you notice that for hose part numbers, we talked about inside diameter, and for tube part numbers, we referred to an outside diameter?
