What is the Matlab command for discrete plot?

What is the Matlab command for discrete plot?

stem( X , Y ) plots the data sequence, Y , at values specified by X . If X is a vector and Y is a matrix, then stem plots each column of Y against the set of values specified by X , such that all elements in a row of Y are plotted against the same value.

How do you plot a discrete value?

1. Column Charts. The most commonly used chart type for discrete data is the column chart.
2. Bar Charts. You also can use bar charts for discrete values.
3. Pie Charts. Pie charts also work well for displaying discrete data, as all the values combined equal 100 percent of the total.
4. Histograms.

How do I show data types in Simulink?

To display the data types for the ports in your model. On the Simulink® Debug tab, select Information Overlays > Base Data Types.

How does Matlab calculate cross correlation?

r = xcorr( x , y ) returns the cross-correlation of two discrete-time sequences. Cross-correlation measures the similarity between a vector x and shifted (lagged) copies of a vector y as a function of the lag.

How do you do quantization in Matlab?

y = quantize( q , x ) uses the quantizer object q to quantize x .

1. When x is a numeric array, each element of x is quantized. The output y is returned as a built-in double.
2. When x is a cell array, each numeric element of the cell array is quantized.
3. When x is a structure, each numeric field of x is quantized.

What is discrete-time signal?

A discrete signal or discrete-time signal is a time series consisting of a sequence of quantities. Unlike a continuous-time signal, a discrete-time signal is not a function of a continuous argument; however, it may have been obtained by sampling from a continuous-time signal. This process is called sampling.

What are the different types of discrete-time signals?

Discrete time signals can be classified as follows:

• Even and odd signals.
• Periodic and non-periodic signals.
• Deterministic and random signals.
• Energy signals and power signals.
• Muitichannel and multidimensional signals.

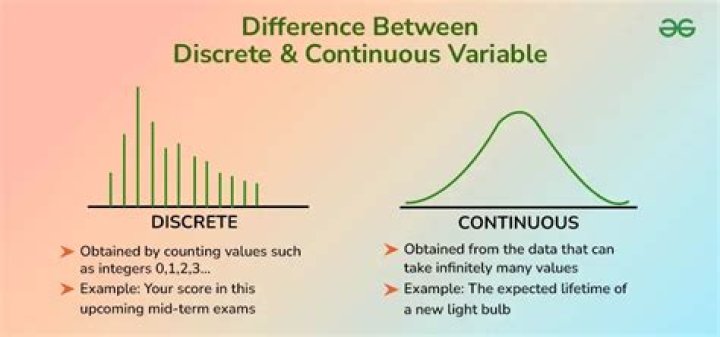

What are examples of discrete data?

Examples of discrete data include the number of people in a class, test questions answered correctly, and home runs hit. Tables, or information displayed in columns and rows, and graphs, or structured diagrams that display the relationship among variables using two axes, are two ways to display discrete data.

Is age discrete or continuous?

Technically speaking, age is a continuous variable because it can take on any value with any number of decimal places. What is this? If you know someone’s birth date, you can calculate their exact age including years, months, weeks, days, hours, seconds, etc. so it’s possible to say that someone is 6.225549 years old.

Why display is used is Simulink?

Description. The Display block shows the value of the input data. You can specify the frequency of the display. For numeric input data, you can also specify the format of display.

What is scope in Simulink?

The Scope allows you to adjust the amount of time and the range of input values displayed. You can move and resize the Scope window and you can modify the Scope’s parameter values during the simulation. When you start a simulation, Simulink does not open Scope windows, although it does write data to connected Scopes.
