What is Lowrance NMEA 2000

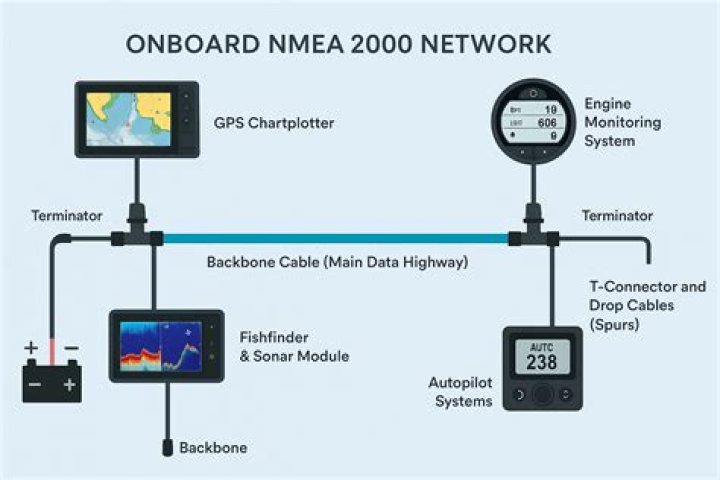

NMEA 2000 is the standard connection methods between marine displays and sensors such as transducers. Using the connections, you can create a network of electronic marine devices that can work together and share data.

What does Lowrance NMEA do?

Vessel Sensors & Networking. … Monitor your location, water temperature, fuel and fluid levels and other engine data from the convenience of your HDS Carbon, LIVE or Elite FS touchscreen by rigging your boat with a network of Lowrance devices and NMEA 2000 sensors.

Why do I need NMEA 2000?

NMEA 2000 is a plug-and-play communications standard used for connecting marine instrumentation within vessels. The plug-and-play interface allows devices made by different manufacturers to communicate with each other within the same network without causing interference between devices.

What engines are compatible with NMEA 2000?

This includes MFDs from Furuno, Garmin, Humminbird, Lowrance, Raymarine and Simrad. Many of today’s large marine engines are also NMEA 2000 compatible, including models from Caterpillar, Evinrude, Honda, MAN, Mercury, Suzuki, Volvo Penta, Yamaha and Yanmar.

Can you run two Lowrance units off one transducer?

If both transducers are using the same frequency, they will interfere with each other once you reach a water depth that allows the two beams to cross. … If you are limited to using the same transducer frequency on each unit, you will have to run one at a time to avoid interference.

How many devices can connect to NMEA 2000?

An NMEA 2000 network can have up to 50 physical devices connected to the network at any one time.

Does NMEA 2000 provide power to devices?

Yes, any NMEA 2000 network needs power. A large amount of NMEA 2000 devices are powered solely from the backbone, and this power is used to operate the device. Whilst this is the case for most devices, not all devices are powered from the NMEA 2000 network completely.

Does hook reveal have NMEA?

Hook2 & Hook Reveal – Will these Hook units work with an NMEA 2000 network? The Hook2 and Hook Reveal series are not designed to be networked with other units. It is made for the angler that wants to fish with the basic features. To enjoy the benefits of networking, the Elite and HDS products are recommended.

How long can a NMEA 2000 backbone be?

The maximum length of an NMEA 2000 cable used to connect any device or accessory to a T-Connector is 20 feet (6 meters). If a 20 feet cable is not long enough to connect the device or accessory to the T-Connector, a longer NMEA 2000 backbone cable connects to the NMEA 2000 network’s backbone.

Is my engine NMEA 2000 compatible?

Honda – All 225 Hondas from 2010 and nwer, as well as the 60 and 250HP Hondas are NMEA2000 Capable. They require a Honda NMEA Interface Cable. This cable will attach to a plug inside the engine cowling on one end, and then connect to a NMEA2000 T Connector on the other end.

Article first time published on

Can you connect 2 Lowrance units together?

The Lowrance Hook 2 Series cannot be linked together. If you want a Lowrance unit that can be linked together you will need to upgrade to the Elite Ti series, Hds Gen 3 Series, or the Hds Carbon Series.

When was NMEA 2000 introduced?

BACKGROUND The National Marine Electronics Association (NMEA) completed and released the NMEA 2000® Standard for Serial-Data Networking of Marine Electronic Devices during October 2001. The development of this standard began in 1994.

Does Humminbird use NMEA 2000?

GIVING YOU. PEACE OF MIND. From boat performance to weather and water conditions, make sense of it all with NMEA 2000(R) Networking. Easily connect compatible accessories to the NMEA 2000 backbone and connect them to any compatible Humminbird model.

Does NMEA 2000 Share Sonar?

Sonar cannot be shared over NMEA 2000 or NMEA 0183 networking. … The units do not have to be directly connected to each other, they can be bridged through other Ethernet capable units or devices, or a Network Expansion Port (NEP-2 000-10029-001).

Can you run two fish finders at the same time?

Any time you run two units with the same frequency there is a risk of interference. However, with the modern noise rejection systems built into today’s fish finders, in most conditions when there is a unit on the front and back of the boat with the same frequencies, they will not interfere with each other.

Can you run 2 fish finders off 1 transducer?

While it is not recommended that more than one transducer be run simultaneously, there can be multiple transducers installed on a boat. … For best results, two transducers need to have at least a 50 kHz difference in their frequencies to not cause interference.

How do I know if my NMEA 2000 is working?

Switch-off the power to the NMEA 2000 network.
Connect the test cable to the diagnostic T-connector next to the power insertion point.
Using the multimeter, measure the voltage between the RED and BLACK wires. …
Measure the resistance between the WHITE and BLUE wires.

How do I connect NMEA 2000 to power?

In order for the system to function properly, connect the power in the middle of the backbone. NMEA 2000 networks use 12-volt DC power only. Avoid connecting the power wires to any other power source such as 24-volt DC.

What is the difference between NMEA 0183 and NMEA 2000?

NMEA 0183 operates on a 1-to-1 connection method using RS232/RS422, where multiplexers and buffers are required to connect multiple devices ‘together’. NMEA 2000 uses CAN with a backbone / drop cable network system, where all devices on the network talk to one another.

What exactly is GPS NMEA data?

Today in the world of GPS, NMEA is a standard data format supported by all GPS manufacturers, much like ASCII is the standard for digital computer characters in the computer world. The purpose of NMEA is to give equipment users the ability to mix and match hardware and software.

Can you splice a NMEA 2000 cable?

You can cut and splice. Each wire properly soldered and shrink wrapped and shrink wrap the outside core. You could just use a new Nmea2000 connector.

Between which two pins wires should you measure the NMEA 2000 network resistance?

Measure the resistance between pins 1 (Bare) and 3 (Black) of a network connector. This measurement should be a very high resistance (OPEN).

What does a Lowrance Point 1 do?

The Lowrance Point-1 is the ideal position and heading device. The Point-1 provides extremely accurate and rapid boat position and speed updates. In addition – unlike other position-only antennas – the Point-1 provides heading for accurate boat direction at any speed and for radar/chart overlay.

What does the Yamaha Gateway do?

Yamaha’s Gateways allow certain engine and boat data to be displayed on NMEA-2000 compatible displays that are external to the Yamaha system. The Gateway is for installation with Command Link or Command Link Plus networks, such as those found with mechanical or DEC (digital electronic) controls.

Is simrad compatible with Yamaha?

The Yamaha Command Link Plus system allows boaters to monitor the performance of up to four Yamaha outboard engines and critical boat systems on the same screen. …

What does the Lowrance Ethernet cable do?

The Lowrance® Ethernet Cable provides rugged, moisture- and solvent-resistant high-speed data transfer.
