What is a plug type NEMA 5-15P?

What is a plug type NEMA 5-15P?

5-15P is your standard household plug used for to connect small appliances such as TV’s, Microwaves, hairdryers, etc to a wall outlet. The NEMA 5-15P is compatible with a Nema 5-20R T-Slot outlet, which is commonly found in new home installations.

How many amps is 5-15P?

10 Amps
Universal Plug Adapter – NEMA 5-15P – for Standard 110/115/120 Volt Receptacles – 10 Amps Max – 1 Pack.

Can NEMA 5-15P plug into NEMA 5 20R?

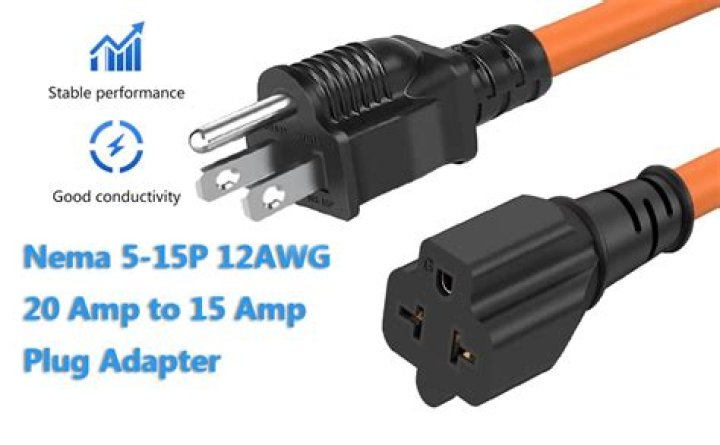

Conveniently converts a 20-amp T-blade plug end into a standard household plug that can be used with any standard grounded 110 V outlet. This household T-blade adapter is a 15 to 20 Amp T-blade adapter. The NEMA 5-15P to NEMA 5-15/20R adapter is useful to plug a cord with a NEMA 5-20, 20 Amp, 125 Volt male plug.

What does NEMA 5-15R mean?

In the case of a NEMA 5-15, the amperage rating is 15 amps. Thus, an L5-15P is a locking 125 volt, 15 amp, plug. A 5-20R is a straight blade, 125 volt, 20 amp, receptacle or outlet.

What is L5 30P?

Item #152403Model #L530PZ. Typically used for temporary power/generator hook-up. Internal “Triple Gripper” cord grip secures and protects wire and eliminates extra screws for simplified wiring.

What is L5 30p?

Can I put a 15A receptacle on a 20A circuit?

You cannot push a 15 Amp plug into a 20 amp receptacle. 20Amp plugs are typically assigned to devices like air compressors and saws that require a lot of power. For the most part, you don’t have to worry about overloading your 15 Amp outlet by plugging a 20 Amp device into it.

Can I replace a 15A outlet with a 20A?

There is no problem with using a 20A switch on a 15A circuit, as the breaker will trip and protect the switch from over-current.

What is the difference between 5-15R and 5-15P?

NEMA 1-15P (two-pole, no ground) and NEMA 5-15P (two-pole with ground pin) plugs are used on common domestic electrical equipment, and NEMA 5-15R is the standard 15-ampere electric receptacle (outlet) found in the United States, and under relevant national standards, in Canada (CSA C22.

What is L5 30R used for?

This power cord consists of a L5-30P male on one end and a L5-30R female on the other end. It is typically used as an extension cable.

Is L5-30P same as L5-30R?

L5-30P is NEMA L5-30 plug. L5-30R is NEMA L5-30 Receptacle.

What does L5-30P plug into?

Use an L5-30P pigtail power adapter to plug a device with a 5-15P or 5-20P into a device with an L5-30R power strip receptacle or wall outlet. Uses heavy-duty commercial grade cord ends, and SJOOW water and oil resistant cord.

What is the difference between a NEMA 1-15P and NEMA 5 plug?

NEMA standards exist for 1-15P, 1-20P and 1-30P plugs, and the 1-15R receptacle. There are no 1-20R and 1-30R receptacles, because 1-20P and 1-30P can mate with a corresponding NEMA 5 receptacle. A non-polarized 1-15P plug has 2 identical blades. One blade is wider on a polarized 1-15P plug.

Is the NEMA 5-15 connector locking or not?

However, you can al so find midget or miniature locking NEMA connectors denoted by “ML.” Hence, the NEMA 5-15 connector can either be locking or non-locking. Apart from the locking system, your NEMA connector can either be grounded or ungrounded. Grounded simply means that extra power goes to the ground away from your appliances.

What is the difference between a 5-20R and 5-30 receptacle?

The 5-20R receptacle has a T-shaped neutral hole, to accept both 5-15P and 5-20P plugs. An acceptable alternative version of the 5-20R receptacle has a rectangular slot that will only accept 5-20P plugs. The 5-30 and 5-50 are physically larger, with 1 in (25.4 mm) between power pins; 5-30 also has an L-shaped neutral blade.

What is the difference between The L5-15R and The 5-30R?

The L5-15R, while sharing the same electrical rating, is a locking design that is not physically compatible with the straight-blade 5-15 design. The 5-30R has the same two-pole, three-wire configuration and 125 V rating, but is rated for 30 A.
