What Is A Part 1 ball valve

A Part 1 ball valve or Portsmouth ball valve is a ball valve made to British Standard specification 1212, Part 1. It consists of a piston inside a brass housing, with a float arm secured to the valve via a split pin.

What Is A Part 1 or 2 ball valve?

A part 1 Valve has the water outlet spout on the underside of the float valve and a part 2 has it on top of the body with a plastic nozzle which directs the water downwards into the tank. Both types are typically found in loft cold water tanks or feed and expansion tanks.

What is a 1 piece ball valve?

One-piece ball valves have a solid, cast body which reduces the risk for leakage. They are inexpensive and generally not repaired. … As the name suggests, the two piece ball valve consists of two pieces, one piece that has one end connection and the body.

What is the difference between Type 1 and Type 2 ball valves?

The first difference concerns where on the valve the water comes out. On a Part 1 or ‘Portsmouth’ valve, the outlet is on the underside of the valve. However, on a Part 2 or ‘diaphragm’ valve, the outlet is on the top. Water is directed down into the cistern via a small plastic spout which screws onto the valve body.

What Is A Part 3 ball valve?

A Part 3 ball valve or diaphragm ball valve is a ball valve made to British Standard specification 1212, Part 3. It consists of a plunger and a diaphragm washer inside a plastic housing. … When the water level in the cistern rises, the float arm pushes the plunger into the valve.

What ball valve do I need?

If the internal diameter (ID) of the hose is close to 2” you will need a 2” ball valve, or if the external diameter of the male thread is close to 2” you will need a 2” ball valve.

What is the difference between a Part 2 and Part 3 float valve?

Part 3 float / ballcock valves look like part 2 valves and operate in the same way – the main difference is that they are made from plastic instead of brass. Part 3 ballcock valves are typically used as fill valves in older handle flush WC toilet cisterns.

What is the difference between a high pressure and low pressure float valve?

Garfield Member. High pressure is when a w/c is fed directly from the main supply,low pressure is when its fed from the storage cistern in the loft.

Which float valve is best?

• Raincol Stainless Steel Automatic 2 Pack Float Valve. …
• MMonDod NPT Mini Float Ball Valve – 1/2 Inch. …
• Meekoo Float Ball Valve Automatic. …
• M.Z.A Water Tank Float Valve with Adjustable Arm. …
• Mudder Water Tank Filter Adjustable Float Ball Valve. …
• MACGOAL Water Float Valve with Adjustable Arm.

What is a Portsmouth valve?

A Part 1 ball valve or Portsmouth ball valve is a ball valve made to British Standard specification 1212, Part 1. … When the water level in the cistern rises, the arm pushes the piston and its washer onto the valve seating, closing the valve.

Article first time published on

What are the types of ball valves?

Types. There are five general body styles of ball valves: single body, three-piece body, split body, top entry, and welded. The difference is based on how the pieces of the valve—especially the casing that contains the ball itself—are manufactured and assembled. The valve operation is the same in each case.

What is the advantage of a 3 piece ball valve?

Advantages of 3-Piece Ball Valves Changing seats and seals is more affordable than replacing the entire valve, and not having to remove the pipe connectors prevents a line shutdown should maintenance be required.

How does a floating ball valve work?

Floating ball valves are operated by a shaft, or stem, attached to the top of the ball that turns it 90 degrees (a quarter turn). As the ball rotates, the port is covered or uncovered by the wall of the valve body, either releasing or halting the flow of media.

Which way round does a diaphragm washer go?

Normally the washer is fitted with the convex side facing the arm and float. The assembly at the other side of the valve body is valve cone facing inwards (pointy end in first) then washer (rubber should be ok) then rear body section. Thanks very much for that concise explanation.

How many types of float valves are there?

Types of Float Valves The float valves are available in two types.

What is an equilibrium ball valve?

When fluid levels are low in a tank, the float will drop and keep the valve it is controlling open. … Our collection of float valves includes a broad selection of options including an array of state of the art WRAS approved Equilibrium float valves – also known as equilibrium ball valves.

How do I choose a ball valve?

In order to choose the right Ball Valve, identifying the pressure level is also imperative because it will help in selecting the specialized valve with the material involved. Ideally, Ball Valves are available in stainless steel, ceramic and even PVC for accentuating different types of liquid flow.

How do I choose a ball valve size?

The nominal diameter is indicated on the body of the valve in inches or by “DN” followed by the value is mm unit of measure, which corresponds to the size expressed in the inches, e.g.: DN20 is equivalent to ¾ inch NPT or BSP connection. The effective diameter indicates the actual port diameter in the ball.

What is a Type 2 ball valve?

A Part 2 ball valve or diaphragm ball valve is a ball valve made to British Standard specification 1212, Part 2. … When the water level in the cistern rises, the float arm pushes the plunger into the valve. The plunger then pushes the diaphragm washer onto the valve seating, closing the valve.

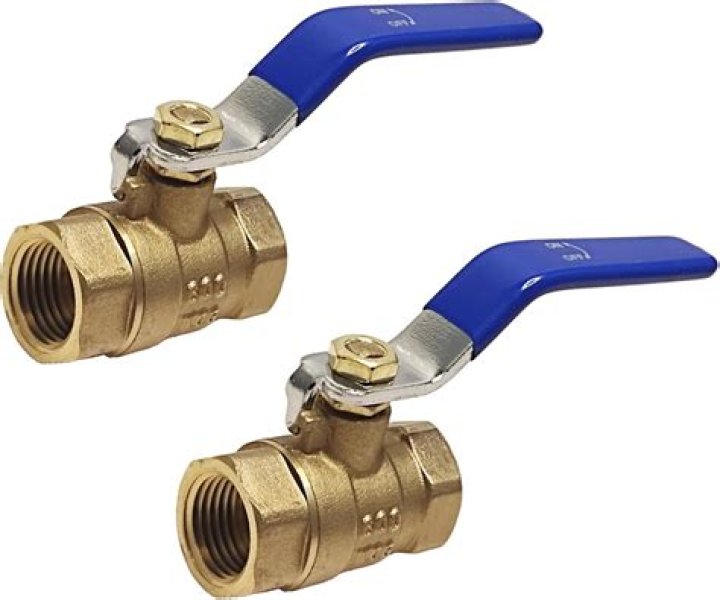

What is a ball valve in plumbing?

Ball valves, also called shut-off valves, tend to be increasingly found in newer homes. Ball valves use a handle to control the placement of a hollow, perforated sphere in the mechanism. When the handle is turned, the hole immediately opens or closes the water flow.

Do I need high or low pressure ball valve?

All ball valves are supplied suitable for high pressure as standard. In fact, it is becoming more difficult to find low pressure ones now as they are now almost never installed. If you think about it, you must need a high pressure valve because the tank is fed from the mains incoming water.

What is a low pressure float valve?

The low-pressure float valve controls the liquid level, and is normally mounted in a chamber parallel to the liquid/vapor separator. For thermosiphon systems, this modifies the effect of the force of gravity, which drives the refrigerant into the evaporator.

What is low pressure valve?

Low pressure valves are designed in various type as they regulates and control valve flow by opening, closing or partially obstructing different passageways.

How does a diaphragm valve work?

Diaphragm valves use a flexible diaphragm connected to a compressor by a stud which is molded into the diaphragm. Instead of pinching the liner closed to provide shut-off, the diaphragm is pushed into contact with the bottom of the valve body to provide shut-off.

Where float operated valves are used they should comply with?

When used under the conditions for which they are designed, non-metallic materials in contact with or likely to come into contact with potable water shall comply with BS 6920-1.

Which types of BS 1212 float operated valves can normally be used in a cold water storage cistern?

BS 1212 part 1 is the British Standard number for piston type float operated valves. Often called a “Portsmouth valve”, these brass BS1212/1 float / ballcock valves are used as a cold water storage tank or central heating feed and expansion header tank inlet / fill valve.

How do ball valves fail?

A variety of factors can contribute to ball valve failure including poor design (chemical compatibility, rated pressure/flow rate, etc.), faulty installation, and/or improper operation.

Why is it called a ball valve?

A ball valve is a shut off valve that controls the flow of a liquid or gas by means of a rotary ball having a bore. By rotating the ball a quarter turn (90 degrees) around its axis, the medium can flow through or is blocked. … As a result, they are more popular as a shut off valve then for example the gate valve.

What is the difference between a 2 piece and 3 piece golf ball?

Two-piece golf balls are composed of a solid center core with a hard, surlyn cover. Three-piece golf balls, on the other hand, contain a solid or liquid center core, an outer layer composed of rubber and a soft cover.

What is a top entry ball valve?

Top entry ball valves are valves that assembled its ball from top side part. It just like a globe valve that has body and bonnet except the trim part utilize a ball type. It comprises a one single body. Usually top entry ball valves are made from casting metal.

What type of valve is a butterfly valve?

Principle of Operation The butterfly valve is classified as a quarter-turn valve. It works like a ball valve for quick shutoff, but unlike a ball valve, the butterfly valve can also open and close incrementally. This difference means that the disc is always present in the flow and allows for a drop in pressure.
