What is 208V 3 phase?

208V 3 Phase power has 3 electrical legs (phases) evenly spaced in a circle (360 degrees / 3 phases = 120 degrees) around a center (neutral). Each leg (phase) provides power (phase voltage) at a unique angle (phase angle) to the center (neutral).

What does a 3 phase plug look like?

Three-phase power is supplied by four wires. Three hot wires carrying 120 volts of electricity and one neutral. The three hot wires in a three-phase circuit are colored black, blue and red; a white wire is the neutral and a green wire is used for the ground. …

How do you get 240v from 208V to 3 phase?

Some equipment will run on 208 at slightly reduced power. Check your manual. In that case you can power your device by wiring it to two legs of the three phase. Otherwise, you can get 240 from 208 with a buck-boost transformer that is set up to boost the voltage by 32V.

How many wires can be in a 208V circuit?

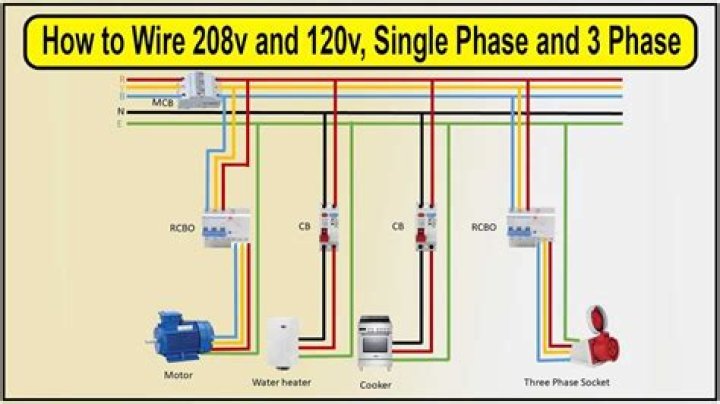

A 208V three phase motor is connected to all three hot busbars plus neutral and ground wires. A 208V single phase water heater is connected to hot 1 and hot 2 plus ground wire.

What is the difference between 208 and 240 volts?

What is the difference between 208-volt and 240-volt? 240-volt is single-phase power, while 208-volt is 3-phase power. Phase refers to the method of delivery of the power load. Trying to make a single-phase tool or appliance work in a three-phase system can be a shocking experience, literally!

What is the color code for 208V 3 phase?

Wiring Colors | Electrical Wire Color Coding Standards The USA has their own wiring colors for electrical circuits, black, red, and blue are used for 208 VAC three-phase; brown, orange and yellow are used for 480 VAC.

What is the color code for 3 phase wiring?

yellow
Phase 3 – Phase 3 wiring should be yellow. Neutral – Neutral wires should be grey. Ground – Ground wiring should be green, or green with a yellow stripe.

What is 3 phase 4 wire distribution system?

Three phase, 4-wire distribution system This system uses star connected phase windings and the fourth wire or neutral wire is taken from the star point. If the voltage of each winding is V, then the line-to-line voltage (line voltage) is √3V and the line-to-neutral voltage (phase voltage) is V.

Can you get 240V out of a 208V panel?

If the device’s nameplate states that it can run at 208v (in addition to say 220v or 240v), you are fine. Most modern devices can support this, but you must check the nameplate of each device to be powered. …

Can you get 240V from 480V?

If I get a 480V 3ph to 240V 3ph step down transformer will I be able to run a 1ph 240V pump between 2 legs? Yes, that would work. However, the transformer need not be 3-phase. A single phase 480vac to 240vac transformer will work too.

What’s the difference between 220 volts and 3 phase?

220 volts, 3 phase 1 If you have 220 volts and 3 phase power available, the kiln will come with a 3-wire powerblock for the 3 hot wires that… 2 Between each hot wire, 220 volts can be measured. 3 There is no need for a neutral wire to come to the kiln in this case, just an earth ground wire in addition to the 3 hot… More …

What does 208v single phase have a neutral?

-208 volts is type of 4-wire 3 phase with 3 Hot wires and a Neutral used for commercial applications, or 2-wire single-phase with 2 Hot wires, or a 2-wire single-phase with 1 Hot and 1 Neutral wire, depending on the electric service delivered to building.

What kind of wires are used for 3 phase power?

Most commercial buildings use 3-phase power, which uses four wires – three live and one neutral – in an alternating current circuit. Low-power loads in this setup can rely on 120-volt wires as in a single-phase power structure.

What’s the difference between 208 and 220 volts?

Furthermore, what is 208 volts used for? -208 volts is type of 4-wire 3 phase with 3 Hot wires and a Neutral used for commercial applications, or 2-wire single-phase with 2 Hot wires, or a 2-wire single-phase with 1 Hot and 1 Neutral wire, depending on the electric service delivered to building. Accordingly, is 208v the same as 220v?

What kind of power does a 208v 3 phase wire have?

Each leg (phase) provides power (phase voltage) at a unique angle (phase angle) to the center (neutral). 208V 3 Phase power also goes by the names 208V 3 Phase 4 Wire and 208Y/120V.

What are the different types of 208v power panels?

A 208V 3 Phase Power Panel provides 3 power circuit types (120V 1 Phase, 208V 1 Phase, 208V 3 Phase) in 7 circuit configurations based on Circuit Breaker (CB) Type (1 Pole, 2 Pole, 3 Pole) and Position (1, 2, 3, etc.) as shown below. 208V 1 Phase (Phase A, Phase B)

What are the three phases of 120 volt?

In commercial 120/208 volt electrical systems, there are three phases – A, B, and C. Each phase is one of three colors – black, red, or blue. Phase A is circuit 1 and 2 (black), Phase B is circuit 3 and 4 (red), Phase C is circuit 5 and 6 (blue). It then starts over with the phases.

What do you need to know about 3 phase wiring?

Wiring any other three-phase system will be done exactly the same way. You should have three distinct terminals or wires coming out of the system which allows you to make a connection. Run a phase to each terminal and you should have power within the system.
