What happens if you have too much slope in drain pipe?

What happens if you have too much slope in drain pipe?

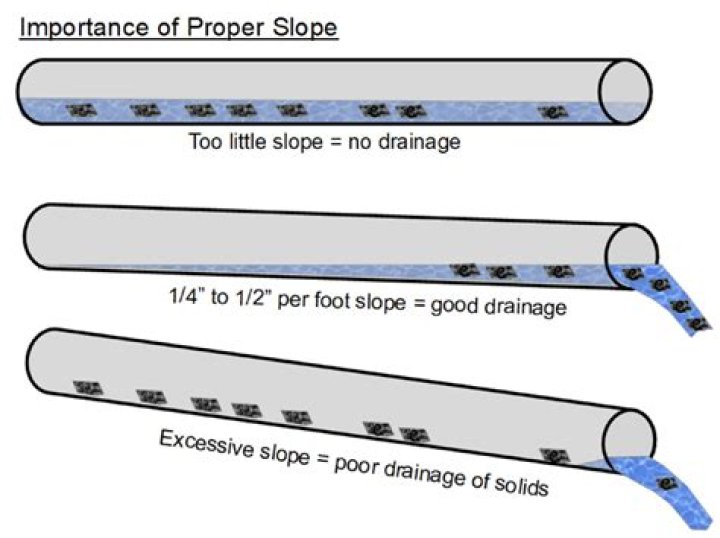

But when a drain pipe or sewer line is sloped too steeply (1/2” per foot or more), it is just as likely to clog as an undersloped pipe because the liquids travel too fast and the solids get left behind.

How much slope should a drain pipe have?

The ideal slope of any drain line is ¼ inch per foot of pipe. In other words, for every foot the pipe travels horizontally, it should be dropping ¼ inch vertically. Many drains either have too little slope or too much slope. That’s right, it is possible to have too much slope in your drain lines.

Can a drain be too steep?

Gradients from 1 in 40 to 1 in 110 will normally give adequate flow velocities. If the gradient is steeper than 1 in 40, the liquid may run faster than the solids in the sloping foul water pipe thus leaving the solids stranded, which could then block the pipe.

Will a 1% slope drain?

All of your drain pipe (with one exception) must slope slightly downhill. Usually 1/8″ per foot is plenty for drainage, this is the same as the commonly recommended 1% slope.

Why are drains laid not too steep or too shallow?

A slope that is too steep will cause the liquids to run faster than the solids, leading to clogs. A slope that is too shallow does not create enough velocity for proper drainage. All above ground and below ground horizontal drainage pipes should be laid to an adequate gradient. …

What is the minimum fall for drainage?

Standard Horizontal Drainage Pipe Slope

What should the slope of a drain line be?

The ideal slope of any drain line is ¼ inch per foot of pipe. In other words, for every foot the pipe travels horizontally, it should be dropping ¼ inch vertically. Many drains either have too little slope or too much slope. That’s right, it is possible to have too much slope in your drain lines.

What should the drop rate be for a drain pipe?

While the generally recommended drop rate is 1/4 inch per linear foot, some areas allow drainage grades as gradual as 1/8 inch per foot. A slope between 1/4 inch and 1/2 inch per foot provides the ideal drainage flow rate to prevent buildup of waste solids inside the pipes.

What happens when a pipe slope is too steep?

An insufficient slope slows the movement of water and solids, contributing to clogging and other problems. Too steep a pipe slope can cause liquids to separate out of the waste water and run downhill faster than solids.

How much slope does a vent line need?

Vent Line Slope. While the vent lines are designed to deliver air to the system from the roof vent pipe, water vapor routinely condenses in the pipes. This condensate must be allowed to drain back to the sewer or septic tank so the vent lines also must have a minimum fall of 1/8-inch per foot.

How do you calculate the slope of a pipe?

If you want that same 20 foot pipe to slope at the maximum of 3 inches per foot, multiply 20 by 3 for a total of 60 inches of slope. Pipes with bends require a little more calculation than straight pipes. If you have a pipe that turns, you will need to calculate the slope of each section individually.

How do you calculate Drainage slope?

As a rule of thumb, all areas around the drain should have a similar slope. To calculate this, multiply the length in feet of the farthest wall from the drain and multiply that result by 0.125. This will be the height in inches of the added floor surface at the farthest edges from the drain. Mark this location on the walls surrounding the drain.

What is proper drain slope?

Proper drainage slope based on the International Residential Code is a minimum fall (slope) of 6″ away from the foundation for the 1st 10′. Proper clearance above grade to the top of foundation / bottom of exterior cladding is a minimum 4″ for masonry areas with a minimum 6″ clearance above grade at siding areas.

What is the standard slope for drainage?

Pipes must slope slightly downhill to drain properly. The standard slope is anywhere from ¼ inch to 3 inches per foot. An accurate calculation is essential for properly functioning plumbing. A pipe that doesn’t slope enough, won’t drain.
