What are the two basic sizes of dovetail bits?

What are the two basic sizes of dovetail bits?

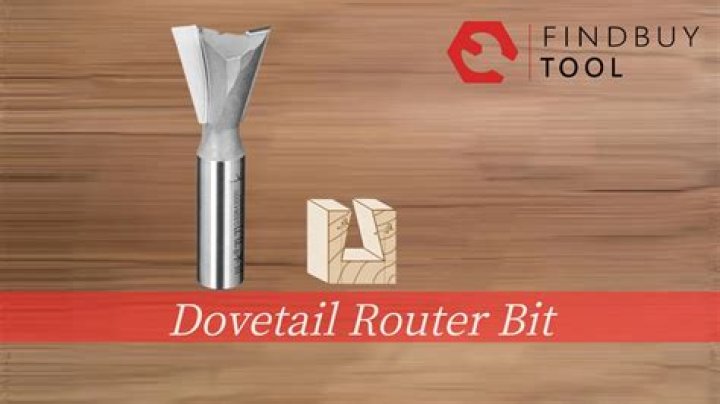

Dovetail bits come in an array of cutting angles—usually 7-14°—and heights (see photo, above), on both 1⁄ 2 ” and 1⁄ 4 ” shanks. Generally speaking, the greater the cutting angle, the stronger the joint.

What are the two sizes of router shanks?

There are two common sizes of router bit shanks: 1/4″ and 1/2″. Many routers come with interchangeable 1/4″ and 1/2″ collets so that either size bit can be used, but some accept only 1/4″ shank bits. Whenever possible, use bits with 1/2″ shanks.

What are dovetail bits for?

Dovetails are perfect for making strong drawer joints, utility and decorative boxes, fine furniture, and more. If you already own a dovetail jig, check the owner’s manual for the correct dimensions of the bits. Many jigs require extended shanks in order to operate properly. Carbide tipped.

What angle should a dovetail be?

Lower (7° to 9°) angles are often advised for joining hardwoods, while higher angles (10° to 14°) are recommended for softwoods and even higher angles (14° to 18°) for half-blind dovetails.

How do I choose a dovetail bit?

The dovetail bit’s working depth must be equal to or slightly greater than the thickness of the pin board or drawer front. Always choose the smallest dovetail bit relative to the pin board thickness, along with the matching straight bit, for that hand-cut look.

Is 8mm shank the same as 1 4?

Cutters can come in a number of different shank diameters, the common imperial sizes are 1/4 “ and 1/2”, whilst in metric they are 6mm, 8mm, and 12mm. Larger shank diameters usually mean less vibration so the quality of cut is better. …

How do you determine round over bit size?

Roundover bit size is determined by the radius of the curve, these two are 3/4″ bit (above) and 1/16″ bit. The perfect choice for easing sharply squared edges, roundover bits are sized by radius.

What ratio is a 14 degree dovetail?

The new 14° marker is designed to approximate a 1:4 ratio, for those who prefer this angle when working in thinner stock, as it not only provides stronger material interlock than traditional ratio angles but produces a slightly exaggerated dovetail joint that many find attractive.

What is the strongest wood joint?

Mortise and Tenon
Mortise and Tenon Woodworking Joints One of the strongest woodworking joints is the mortise and tenon joint. This joint is simple and strong. Woodworkers have used it for many years.

Can you make dovetail joints with a router?

Dovetail joints can be cut by hand as they have been for thousands of years, but power tools such as a table saw or a router and jig make the job much faster and accessible for total beginners.

Can you use a 6mm bit in a 1/4 collet?

Clearly, if the collet fits 1/4″ it can also fit 6mm, probably by just a tiny extra tightening. If your instruction manual claims that it supports both 1/4″ & 6mm, then it’s on the manufacturer if something goes wrong. Unfortunately, you’re still the one that may be hurt, but they would be held liable.

Will a 6mm router bit fit in a 1/4 collet?

It is important that the shank diameter is correct for your router collet. Usually this is fairly obvious, you can’t get an 8mm shank in a 6mm collet, but it is possi- ble to fit a 6mm cutter in a 1/4” collet. Larger cutters will only come with 12mm or 1/2” shanks because smaller shanks would break or deform.

What is the weight of a dovetail shank?

More Information Weight 0.160000 Tech Spec Material: Carbide Bit Type Dovetail Shank Size 1/2″

Are dovetail router bits any good?

The dovetail joint remains a distinctive mark of quality in fine cabinetry and furniture, and these router bits more than live up to that reputation. Rating: All of our dovetail bits are specially designed with high radial and axial relief angles to give you extra clean, sharp edges. You’ll find many applications for these bits.

What can I do with old drill bits?

You’ll find many applications for these bits. Make creative, decorative glue joints for drawers and jewelry boxes, shaker furniture and shadow boxes, sliding dovetail joints for table and leg extensions, or sliding drawer and shelf runners and dividers. Smaller degree bits can be used for stair tread stringer mortising or shelf supports.
