Is torque affected by friction?

Is torque affected by friction?

The torque can be affected by an opposing force that results from a resistant surface. This opposing force is referred to as friction. The frictional torque, therefore, is calculated as the difference between the applied torque and the resulting net, or observed, torque.

How do you calculate friction torque?

With friction present at the axle, ΣT = Tapplied – Tfriction. The applied torque is Tapplied = F∙R1 where F = M2g is the tangential force and R1 is the radius of the disc about which the string is wrapped.

What is torsional friction?

Torsional friction is defined as the reciprocating rotational motion of a pair under a normal load. It widely occurs in human hip joints and knee joints, sliding slewing bearings used in engineering machines, the center plate of bogies, and other reciprocating rotation parts of conveyances.

What is engine friction torque?

affects the friction losses. The friction torque is a function of engine speed and. indicated engine torque, Tf = f(ω, Tind). The friction torque is presented as. a look-up table with two inputs ω and Tind.

What is friction torque in bearing?

The friction torque in a rolling element bearing consists essentially of two components. One of these is a function of the bearing design and the load imposed on the bearing. The other is a function of the lubricant type, lubricant quantity, and the speed of the bearing.

Does frictional torque depend on angular speed?

Frictional losses are experimentally determined for a uniform circular disc exhibiting rotational motion. Furthermore, the frictional torque is shown to be proportional to the angular speed.

What is static friction torque?

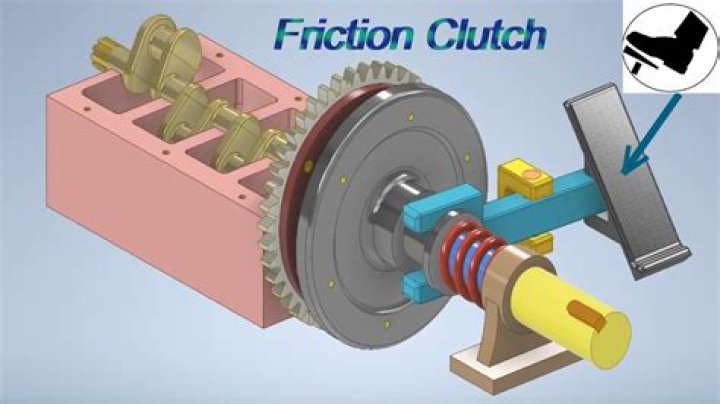

This specifies the friction torque that the frictional surfaces of a friction clutch or brake generate in the static state.

What is Coulomb friction torque?

Coulomb friction torque, which is the friction that opposes rotation with a constant torque at any velocity. The default value is 20 N*m. Viscous friction coefficient. Proportionality coefficient between the friction torque and the relative angular velocity. The parameter value must be greater than or equal to zero.

What are the three components of friction torque?

Components of Load Torques:

• (i) Friction torque TF : Friction will be present at the motor shaft and also in various parts of the load.
• (ii) Windage torque, Tw : When a motor runs, wind generates a torque opposing the motion.
• (iii) Torque required to do the useful mechanical work, TL:

How do you find bearing friction torque?

Ball Bearing Frictional Torque

1. You can calculate approximate figures for frictional torque using this simple formula:
2. Radial ball bearings: 0.5 x 0.0015 x radial load in Newtons* x bearing bore (mm)
3. Axial ball bearings: 0.5 x 0.0013 x axial load in Newtons* x bearing bore (mm)

What is the relationship between torque and angular velocity?

Originally Answered: What is the relation between torque and angular velocity? Torque produces a rotational motion. When the torque causes rotation of the object by an angle ‘ θ radians ‘ then work done by the torque is the product of torque and angle of rotation i.e., W = τ * θ. Angular velocity is = ω = d θ/dt .

Does friction affect speed or velocity?

Friction is a force tends to oppose relative motion between bodies when they are in direct contact. Remember this friction does not oppose motion, it opposes relative motion. Thus friction can affect the speed of a body in the following ways :

What is friction drag torque?

Friction torque is the torque caused by the frictional force that occurs when two objects in contact move.

Does friction increase with velocity?

Some forms of friction do increase with velocity, but certainly not all. Your statement is generally correct for viscous friction, friction involving the flow of fluids. For example, fish or submarines in the water, and balloons or subsonic airplanes in the air all may have their friction increase with velocity.

What is the equation for the force of friction?

Force of friction equation. The formula that lets you calculate the friction force is very simple: F = μ * N. where: F is the force of friction, measured in Newtons ; μ is the dimensionless coefficient of friction, and. N is the normal force (perpendicular to the ground surface), expressed in Newtons.
