How do you solve a series parallel circuit problem?

How do you solve a series parallel circuit problem?

REVIEW:

1. To analyze a series-parallel combination circuit, follow these steps:
2. Reduce the original circuit to a single equivalent resistor, re-drawing the circuit in each step of reduction as simple series and simple parallel parts are reduced to single, equivalent resistors.
3. Solve for total resistance.

What is the formula of series circuit?

The total resistance of a series circuit is equal to the sum of individual resistances.” To calculate the total resistance we use the formula: RT = R1 + R2 + R3.

What is the formula for a series circuit?

Voltage. Total voltage in a series circuit is equal to the sum of the individual voltage drops: Etotal = E1 + E2 + . . . E.

What is one problem with using a series circuit?

What is one problem with using a series circuit? It has a lot of series. If one goes down, they all go down! It doesn’t work properly.

What are the rules for parallel circuits?

From this definition, three rules of parallel circuits follow: All components share the same voltage. Resistances diminish to equal a smaller, total resistance. Branch currents add to equal a larger, total current.

How does a parallel circuit work?

In a parallel circuit, charge divides up into separate branches such that there can be more current in one branch than there is in another. The current outside the branches is the same as the sum of the current in the individual branches. It is still the same amount of current, only split up into more than one pathway.

How is parallel connection calculated?

The sum of the currents through each path is equal to the total current that flows from the source. You can find total resistance in a Parallel circuit with the following formula: 1/Rt = 1/R1 + 1/R2 + 1/R3 +… If one of the parallel paths is broken, current will continue to flow in all the other paths.

What occurs to voltage in a series and parallel circuit?

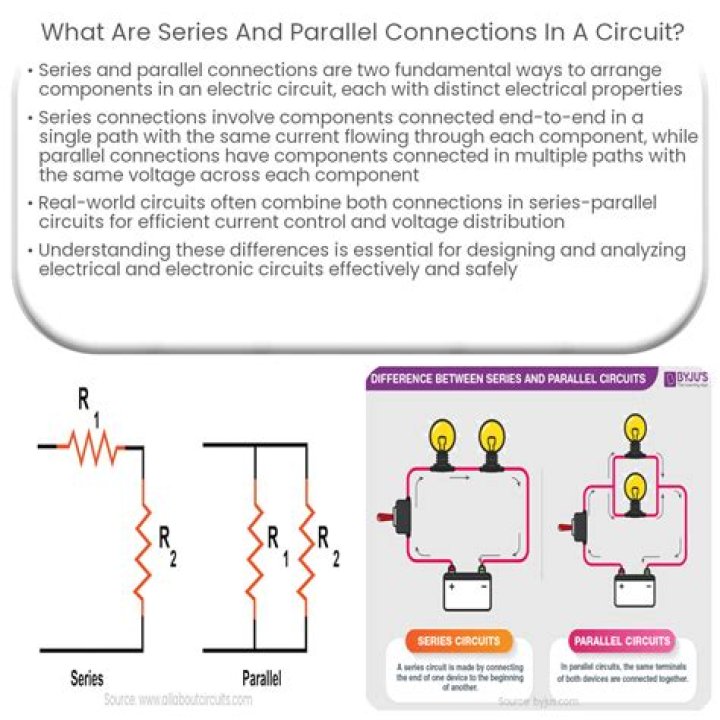

Series and parallel circuits. In a series circuit, the current through each of the components is the same, and the voltage across the circuit is the sum of the voltages across each component. In a parallel circuit, the voltage across each of the components is the same, and the total current is the sum of the currents through each component.

How do you calculate the voltage in a parallel circuit?

Voltage is the same across each component of the parallel circuit. The sum of the currents through each path is equal to the total current that flows from the source. You can find total resistance in a Parallel circuit with the following formula: 1/Rt = 1/R1 + 1/R2 + 1/R3 +…

How do you calculate series circuit?

To calculate series resistance, which you should use when connecting the “out” side of one resistor to the “in” side of another in a circuit, use the formula Req = R1 + R2 + …. Rn. In this formula, n equals the number of resistors in a series.

How do you calculate the total resistance of a series circuit?

Series resistance is simply connecting the “out” side of one resistor to the “in” side of another in a circuit. Each additional resistor placed in a circuit adds to the total resistance of that circuit. The formula for calculating a total of n number of resistors wired in series is: Req = R1 + R2 + ….
