How do you calculate heat flow through a wall?

How do you calculate heat flow through a wall?

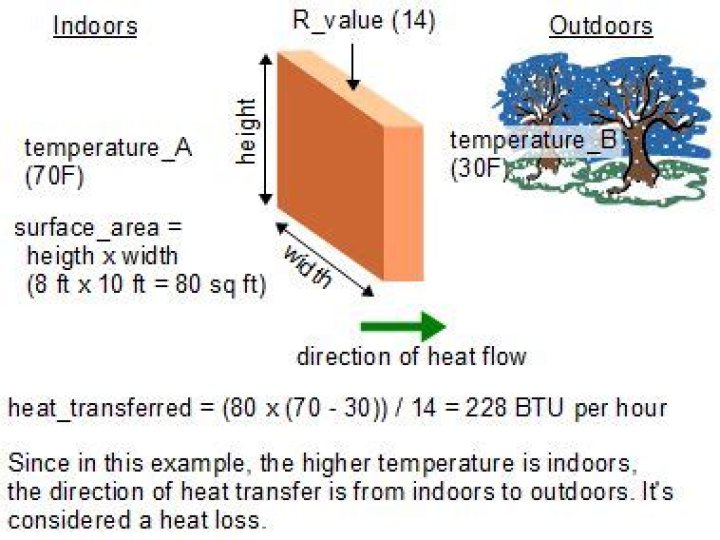

The temperature difference across the wall is ΔT = T2 – T1. It has been experimentally observed that the rate of heat conduction through a layer is proportional to the temperature difference across the layer and the heat transfer area, but it is inversely proportional to the thickness of the layer.

What is the Fourier law for the heat conduction of a wall?

The law of heat conduction, also known as Fourier’s law, states that the rate of heat transfer through a material is proportional to the negative gradient in the temperature and to the area, at right angles to that gradient, through which the heat flows.

What is temp distribution across plane wall?

The temperature distribution is determined, from which the conduction heat transfer rate can be obtained. From this result it is evident that, for one-dimensional, steady-state conduction in a plane wall with no heat generation and constant thermal conductivity, the temperature varies linearly with x.

What is composite wall in heat transfer?

Composite walls comprise of a number of layers of different materials with different properties and thicknesses (Fig. 10). Such cases include a number of series or parallel thermal resistances arising from the different layers of materials.

How do you calculate heat conduction?

The equation for conduction tells us that the rate of heat transfer (Q/t) in Joules per second or watts, is equal to the thermal conductivity of the material (k), multiplied by the surface area of the objects in contact (A), multiplied by the difference in temperature between the two materials (T2 – T1), divided by the …

How do you calculate thermal conduction?

The ratio of the rate of heat flow per unit area to the negative of the temperature gradient is called the thermal conductivity of the material: dQdt=−KAdTdx.

What does Fouriers law describe?

Fourier’s law states that the negative gradient of temperature and the time rate of heat transfer is proportional to the area at right angles of that gradient through which the heat flows. Fourier’s law is the other name of the law of heat conduction.

What is heat transferred through conduction?

Conduction is the process by which heat energy is transmitted through collisions between neighboring atoms or molecules. These vibrating molecules collide with their neighboring molecules, making them also vibrate faster. As these molecules collide, thermal energy is transferred via conduction to the rest of the pan.

What is a plane wall?

The plane of a building wall is a plane that extends from the ground to the top of each wall of a structure. The plane does not include roof area. • A structure with more than one wall along one façade has multiple planes. In these situations, the wall planes are additive.

How is conduction heat transferred?

What is meant by composite wall?

A wall built of a combination of two or more masonry units of different types of materials that are bonded together, one forming the facing of the wall and the other the backup.

How do you calculate thermal conductivity of a wall?

Calculate the heat flux according to Fourier’s law: q = -λΔT/Δx = -0.8 * 20 / 0.35 = -45.71 W/m² . This result means that every second, 45.71 joules of heat energy is transferred through every 1 m² of the wall. You can also use the thermal conductivity calculator to find the λ coefficient.

How do you find the thermal conductivity of a plane wall?

1. HEAT CONDUCTION THROUGH A PLANE WALL • Let us consider a plane wall of homogeneous material through which heat is flowing in x-direction. • Let Q +x L = thickness of the wall T0 A = cross-sectional area of the wall k k = thermal conductivity of wall material T1 T0 , T1 = temperature maintained at surfaces 1 and 2. 1 2 L k

What is steady heat conduction through walls?

Consider steady heat conduction through the walls of a house during a winter day. We know that heat is continuously lost to the outdoors through the wall. We intuitively feel that heat transfer through the wall is in the normal direc- tionto the wall surface, and no significant heat transfer takes place in the wall in other directions (Fig. 3–1).

What direction does heat transfer through a wall?

We intuitively feel that heat transfer through the wall is in the normal direc- tionto the wall surface, and no significant heat transfer takes place in the wall in other directions (Fig. 3–1). Recall that heat transfer in a certain direction is driven by the temperature gradientin that direction.

What is the classification of conduction heat transfer problems?

Classification of conduction heat transfer problems: • steady versus transient heat transfer, • multidimensional heat transfer, • heat generation. Introduction ─ Continue 6. Steady versus Transient Heat Transfer • Steady implies no change with time at any point within the medium • Transient implies variation with time or time dependence 7.
