How do spring-loaded center punches work?
Avery Gonzales
Published Apr 05, 2026
How do spring-loaded center punches work?

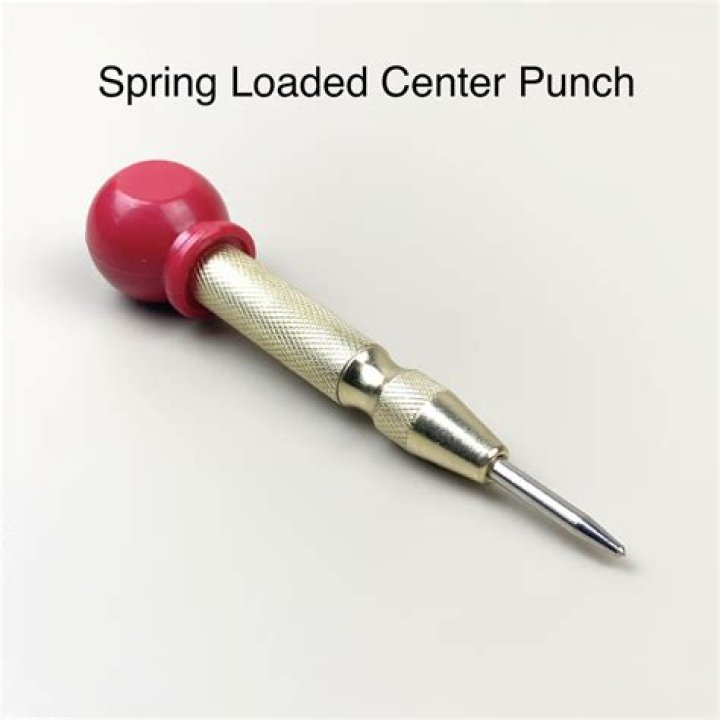

A spring-loaded center punch is used by pressing the marking end against the work piece. A spring-loaded center punch stores energy in a spring, and as compressed it is triggered and releases the spring-stored-energy as an impulse that drives the punch into the work surface, producing the dimple, character, or symbol.
What should a center punch be used for?
A center punch is used to mark the center of a point. It is usually used to mark the center of a hole when drilling holes. A drill has the tendency to “wander” if it does not start in a recess. A center punch forms a large enough dimple to “guide” the tip of the drill.
What is the best automatic center punch?
Top 10 Best Automatic Center Punches 2021
- Starrett 18C Heavy Duty Automatic Center Punch [Best Overall]
- Rennsteig Adjustable Hand Guard Automatic Center Punch.
- Fowler 52-500-290 Heavy Duty Automatic Center Punch.
- Spring Tools 28R45-1 High-Speed Steel Center Punch.
- Starrett 18AA Small Dimple Automatic Center Punch.
How long is a center punch usually?
4″ long
The Starrett 117C center punch with round shank is 4″ long and has a 1/8″ (3 mm) diameter tapered point. The punch is made from hardened and tempered steel, which provides wear resistance and strength. The round shank is knurled for grip. Center punches make small dimple marks in a workpiece to help guide a drill bit.
How much does a center punch cost?
Compare with similar items
| This item 6580 Automatic Center Punch | Automatic Center Punch – 5 inch Brass Spring Loaded Center Hole Punch with Adjustable Tension, Hand Tool for Metal or Wood – Pack of 2 | |
|---|---|---|
| Customer Rating | 4.2 out of 5 stars (3285) | 4.1 out of 5 stars (1230) |
| Price | $999 | $1095 |
| Sold By | Joe Hilliard | Rapid Merchants Direct |
When would you normally use a center punch?
A center punch is useful when making large indentations in metal, such as necessary to engage a twist drill. Take care that you do not strike with so much force as to cause the end to protrude through or dimple the metal around the indentation.
What is the difference between DOT punch and Centre punch?
The centre punch is made form mild steel with the point hardened and tempered so that it withstands impact with the material it is marking. The dot punch is a lighter and thinner version of the centre punch and is used basically for the same job. However, it is more accurately as the dot produced is smaller.
How is a spring loaded center punch used?
A common hand held marking tool is an automatic spring-loaded center punch. This hand tool is used to produce a dimple, characters, or small symbols in a work piece made of metal, wood, or even some plastics. How to Use a Spring Loaded Center Punch A spring-loaded center punch is used by pressing the marking end against the work piece.
How does a center punch work without a hammer?
It performs the same function as an ordinary center punch but without the need for a hammer. When pressed against the workpiece, it stores energy in a spring, eventually releasing it as an impulse that drives the punch, producing the dimple.
What’s the best way to punch a tool?
Grab your hammer, touch the center punch point to your mark, and hold the tool straight up and down as you give the tool a good, solid blow. Tools tend to jump with rapid blows, so best to get a solid punch on the first try. “My mark is a smidge off!”
Where does the energy go in an automatic center punch?
It bears on the hammer mass and pushes it back against its spring as the punch is pressed, storing energy in the hammer spring. As the punch is further pressed against the workpiece, the tumbler travels back until the point where its tapered midsection begins contacting the surface of the guide hole in the body of the punch.
What is drill center punch?
A center punch is used to mark the center of a point. It is usually used to mark the center of a hole when drilling holes. A drill has the tendency to “wander” if it does not start in a recess. A center punch forms a large enough dimple to “guide” the tip of the drill.
What is center point punch?
center punch. n. A tool with a sharp point used in metalworking to create an indentation that marks the center of a hole to be drilled and steadies the drill bit when drilling.
What is center punch tool?
A center punch is a tool, usually made of metal, that was created to aid a carpenter with drilling holes. An individual uses a center punch to make a small impression in the piece of wood, plastic, or metal he or she intends to drill a hole into. The mark the punch makes not only helps the person know where to place…
