How do I reset my Cisco 2500 wireless controller?

How do I reset my Cisco 2500 wireless controller?

Resetting the Controller to Default Settings

1. Start your Internet browser.
2. Enter the controller IP address in the browser address line and press Enter.
3. Enter your username in the User Name text box.
4. Enter the wireless device password in the Password text box and press Enter.
5. Choose Commands > Reset to Factory Default.

What causes DHCP failure?

Two things can cause a DHCP error. One is the configuration on the computer or device that allows a DHCP server to assign it an IP. The other is the configuration of the DHCP server. DHCP errors occur when the DHCP server or router on a network cannot automatically adjust the device’s IP address to join the network.

What happens when the DHCP fails?

If a DHCP server fails or goes offline, network communications can quickly break down. Without DHCP, you’d need to go to each computer and manually assign it an IP address, subnet mask, default gateway and other network settings.

What is DHCP bridging?

DHCP bridging mode provides an option to make controller’s role in DHCP transaction entirely transparent to the wireless clients. The DHCP proxy is not a DHCP relay agent as specified in DHCP relay RFCs .

How do I restart DHCP?

Choose Start from the Services menu to start the DHCP service. Choose Stop from the Services menu to stop the DHCP service. The DHCP daemon stops until it is manually started again, or the system reboots. Choose Restart from the Services menu to stop the DHCP service and immediately restart it.

How do I troubleshoot DHCP problems?

How To Troubleshoot DHCP.

1. Check for IP Address Conflicts. DHCP clients connect to the network using a leased IP address.
2. Check Physical Connectivity.
3. Test connections with other Client using a Static IP Address.
4. Confirm Switch Port Configuration.
5. Verify the source of Clients IP Address.

How do I fix DHCP is not enabled for WIFI?

To enable it, follow the instructions below:

1. Open the Run box by simultaneously pressing the Windows logo key and R.
2. Type services. msc and hit the Enter key.
3. In the list of services, locate DHCP Client and double-click on it.
4. Set its startup type to Automatic.
5. Click Apply and then OK to save the changes.

How does DHCP 43 work?

Lync Server 2010 introduced the usage of DHCP Option 43 which is used to provide clients and devices on a network the ability to locate the Lync Server’s Certificate Provisioning service, and thus automatically download a certificate required to support secure HTTPS and TLS communications for the remainder of the …

What is DHCP 82 Cisco?

DHCP option 82 provides additional security when DHCP is used to allocate network addresses. It enables the controller to act as a DHCP relay agent to prevent DHCP client requests from untrusted sources.

Why is my DualShock 4 not connecting?

A common solution is to try a different USB cable, in case the original one has failed. You can also try to reset the PS4 controller by pressing the reset button on the back of the controller, behind the L2 button. If your controller still won’t connect to your PS4, you might need to get support from Sony.

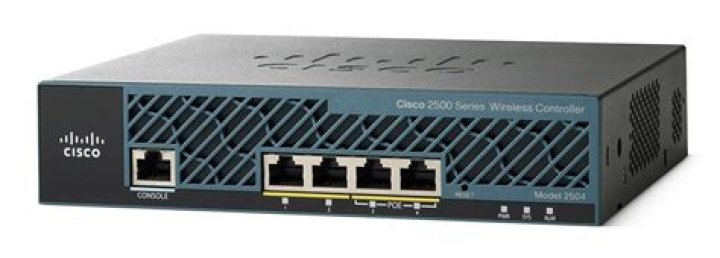

What is the Cisco 2500 series wireless controller?

The Cisco 2500 Series Wireless Controller is a cost-effective systems-wide wireless solution for retail, enterprise branches, and small and medium-sized businesses. The controller can scale in a network as the network grows.

How do I enable the internal DHCP server on my Network?

In order to enable the internal DHCP server, complete these steps: Define a scope that you will use to pull IP addresses (Controller > Internal DHCP Server > DHCP Scope). Click New. Point either your DHCP override to the management interface IP address of your controller.

How do I use the WLC as a DHCP server?

When using the WLC as a dhcp server, you need to have dhcp proxy enabled globally on the WLC and you need to add the WLC management IP address as the primary dhcp server in the dynamic interface. The interface that will use the windows dhcp will need to be entered in the dynamic interface for that particular vlan.

How do I resolve interoperability issues with DHCP proxy?

Interoperability issues can exist between a controller with DHCP proxy enabled and devices that act as both a firewall and DHCP server. This is most likely due to the firewall component of the device as firewalls generally do not respond to proxy requests. The workaround for this issue is to disable DHCP proxy on the controller.
