Can you use a transformer to increase voltage?

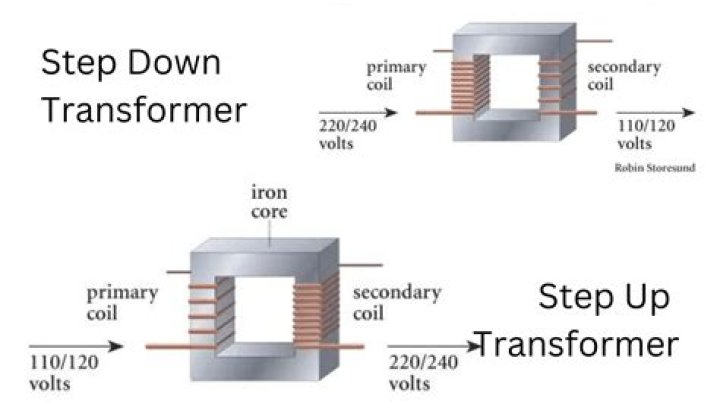

A transformer that increases the voltage from primary to secondary (more secondary winding turns than primary winding turns) is called a step-up transformer. As a step-down unit, this transformer converts high-voltage, low-current power into low-voltage, high-current power.

How much voltage can a step up transformer increase?

Since a step-up transformer increases voltage and decreases current; then , that 50 V AC source should give LESSER CURRENT than the 10 V (according to conservation of energy). All transformers have both a primary and a secondary coil.

How can I make my step up transformer more powerful?

Building an Electrical Step-up Transformer

Use a large steel bolt as the transformer’s magnetic core.
Wrap the bolt with insulating tape to isolate the windings from the “core”.
Wind the two copper wires several times (at least 12 turns) around the ends of the “core” (steel bolt).

Can we use step up transformers as voltage amplifier?

Transformers are unable to amplify (step up) an ac input Voltage without reducing (stepping down) it`s current capability. Amplifier can amplify both current and Voltage at the same time. We can have 1V at 1uA to drive the input but might also get many volts at many Amps at the output.

Does a step up transformer increase resistance?

A transformer can not create power so a step-up in a sense both increases the current and reduces it. If we have 10V ac supply and connect a 10 ohm resistor across it we will have 1 amp flowing in the resistor.

What happens to current when voltage is stepped down?

Similarly, when the voltage decreases in a step-down transformer, the current increases proportionately. In other words, power equals voltage times current. A transformer transfers power from the primary coil to the secondary coil. Since the power must stay the same, if the voltage increases, the current must decrease.

What is the difference between step up and step-down transformer?

The main difference between the step-up and step-down transformer is that the step-up transformer increases the output voltage, while the step-down transformer reduces the output voltage.

How can I make a step-down transformer at home?

Wrap two, equal-length bars of steel with a thin layer of electrically-insulating tape. Wrap several hundred turns of magnet wire around these two bars. You may make these windings with an equal or unequal number of turns, depending on whether or not you want the transformer to be able to “step” voltage up or down.

What is the difference between amplifier and step up transformer?

Step up transformer is a passive device while amplifier is an active device. Step up transformer can amplify voltage by reducing the primary current while amplifier can amplify voltage and current.

What is the difference between step up and step down transformer?

Which is greater a step up or step down transformer?

Now suppose we analyze a circuit containing a step-up transformer (one with more turns of wire in the secondary coil than in the primary coil). With a step-up transformer, the load voltage will be greater than the supply voltage. In this example, I show a step-up transformer with a 1:2 step ratio:

How to calculate the number of turns in a transformer?

Calculate the number of turns needed in the secondary winding of a transformer to transform a primary voltage of 300 volts down to a secondary voltage of 180 volts, if the primary winding has 1150 turns of wire. Most transformer problems are nothing more than ratios, but some students find ratios difficult to handle.

Is it possible to use 230V in 240V?

Yes – you can. Most appliances available in the market, the world over, has a voltage range, instead of one fixed voltage. Most of the better quality manufacturers , in India, specify that the equipment will work at 190 V to 240 V, against a base working voltage of 220 V.

How does a transformer-less inverter circuit work?

Transformer-less inverters utilizes high voltage DC as input which is converted to high voltage AC output by oscillators and H-bridge drivers, since there is no transformer great efficiency more than 97% is achievable, the only loss is from the MOSFETs of H-bridge. The high voltage DC source can be solar panels or battery.

How to calculate the voltage of a transformer?

Calculate the voltage output by the secondary winding of a transformer if the primary voltage is 35 volts, the secondary winding has 4500 turns, and the primary winding has 355 turns. Transformer winding calculations are simply an exercise in mathematical ratios.

How much power do I need for a flyback transformer?

To power the circuit I recommend a power source which can supply a minimum of 2 amps, lower will most likely work but will limit the output. Add more turns on both windings to increase power, (contrary to what I’ve read online), this lowers the operating frequency and allows more primary current to ramp up.

Which is more effective 230V AC or 120V DC?

The domestic supply in our homes are 230V AC (in EU) and 120V AC in US. It is the effective or RMS Voltage. It means that alternating voltage available has the same heating effect as 230V DC or 120V AC respectivly. 230 x √2 Sin x 314 x t Volts.
