Are collar ties required by code?

Are collar ties required by code?

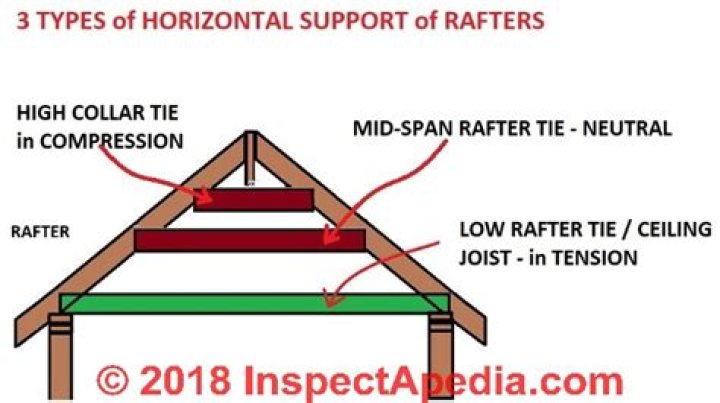

A tension tie is a structural member that is subject to net tension. “Collar tie” is a colloquial phrase that is used among contractors, builders and inspectors, but not usually used in construction or engineering documentation. The 2015 International Residential Code does not require collar ties (or collar beams).

What are the spacing requirements for collar ties?

They supplement the ceiling joists and prevent the rafter couples spreading. Where the rafter span is such that it requires support from underpurlins, collar ties are fitted to opposing common rafters at a point immediately above the underpurlins. Collar ties must be fitted to every second pair of common rafters.

How do you calculate load on a ridge beam?

We need to calculate the total load per lineal foot (plf or pounds per linear foot) that the ridge beam needs to support in order to specify the correct size of the LVL….Example Calculation of a Structural Ridge Beam

1. 13′ x 18′ = 234 sq ft.
2. 234 sq ft x 30 psf = 7020 lbs total.
3. 7020 lbs / 18 ft = 390 plf.

How often do I need rafter ties?

every 4 ft.
Rafter ties amount to an additional framing member that runs above the ceiling joists and that connects opposing rafters. They are generally required every 4 ft., which means that you need a rafter tie only for every other pair of 24-in. o. c. rafters or for every third pair of 16-in.

How to calculate square footage of a room with a high ceiling?

With a high peaked or cathedral ceiling, think of the room as two shapes — a rectangular prism base topped with a triangular prism. Begin by measuring the length and width of the room. Measure the height of the room. Begin at the floor and measure up until the ceiling begins to slope.

How tall should sheets of drywall be in relation to the ceiling?

Decide whether you’ll orient your drywall vertically or horizontally. You’ll determine this by ceiling height: 8-foot or lower: Align 4’x8’ sheets vertically. 9-foot: Use 4’x9’ installed vertically or 4.5’ wide sheets installed horizontally. 10+ foot: Use 4’x10’ or longer sheets installed vertically to match your ceiling height.

How tall should a chandelier be in relation to the ceiling?

The width of the chandelier should be about a foot less than the width of the table at its widest point. The bottom of the chandelier should hang between 30″ – 34″ above the surface of the table when there is an 8′ ceiling. For higher ceilings, you can hang the chandelier up to 3″ higher for each additional foot of ceiling.

What’s the best rule of thumb for decorating a room?

For most rooms with a queen bed, an 8 x 10 rug is going to work best. For most typically sized rooms, there should be approximately 12″ – 18″ of bare floor between the edges of the area rug and the walls of the room. For small rooms, approximately 8″ of exposed floor is a good rule of thumb. The last two (and maybe most important) rules:

How big of a beam do you need for a cathedral ceiling?

In your case, a 26-ft. long beam is going to be mighty hefty. If you’ve got a crane handy, you could use a one-piece beam such as a steel I-beam or a wood glulam. If you’re relying on muscle power, you’ll probably want to set up pipe scaffolding so that you can sandwich the beam together in place from smaller members.

Can You cover the bottom of a cathedral ceiling with drywall?

Typically, this is done by leaving every third collar tie and removing the two in between, as shown in the drawing. You still have rafters 16 in. o. c., so you can easily cover the underside of the roof with drywall and its outside with plywood. But the spacing of the ties is reduced to 48 in. o. c., and the flat ceiling is eliminated.

With a high peaked or cathedral ceiling, think of the room as two shapes — a rectangular prism base topped with a triangular prism. Begin by measuring the length and width of the room. Measure the height of the room. Begin at the floor and measure up until the ceiling begins to slope.

How tall should the ceiling be in a new house?

A new house can also be designed with varying ceiling heights. A grand, 10- or 12-foot entryway ceiling, for example, can pair with a more intimate nine-foot ceiling in the living room. Varying ceiling heights allow you to creatively play with the space, using paint, molding, exposed rafters, and/or skylights to add eye-catching features.
