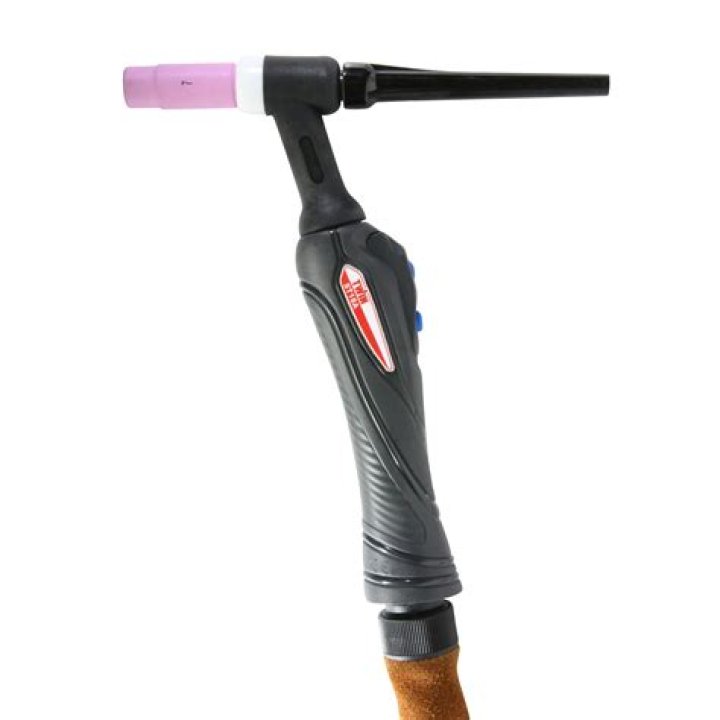

Are all TIG torches universal

TIG torches come in a number of set sizes: 9, 17, 18 & 26. These, generally, are in numerical order, in that 9 is the smallest size torch and 26 is the largest. ‘Generally,’ because the size 20 torch is the water-cooled version of the size 9 (but UNIMIG doesn’t sell that torch).

How do I know what size TIG torch I need?

TIG torches come in a number of set sizes: 9, 17, 18 & 26. These, generally, are in numerical order, in that 9 is the smallest size torch and 26 is the largest. ‘Generally,’ because the size 20 torch is the water-cooled version of the size 9 (but UNIMIG doesn’t sell that torch).

How do I know what kind of TIG torch I have?

Most tig torch manufacturers stamp a model number on the neck of the torch. The numbers are often preceded by letters, WP, SR, ER for example. These letters can usually be ignored as it is the number that is important when selecting the correct parts from this section.

Are TIG torch collets interchangeable?

The TIG collet body screws into the torch body. It is replaceable and is changed to accommodate different size tungsten electrodes and their respective collets.

What are the different types of TIG torches?

There are two main categories of TIG torches: Air/gas cooled and water cooled. The main TIG torch types are detailed below.

What makes a good TIG torch?

The TIG welding torch needs to be rated to at least the same amperage as the welder, preferably higher. So if your TIG machine is rated at 250 amps, you need a torch with at least a 250-amp rating. Otherwise, it’s going to overheat, causing a failure and possibly even burning you.

What size is a t2 TIG torch?

Cooling MethodAir-CooledElectrode Size:1.0-4.0mm / 0.04″-5/32″

What is a Euro TIG torch?

ERGOTIG is the standard range of TIG welding torches. ERGOTIG is the historical range of TIG welding torches by Trafimet and was the first to adopt new ergonomic solutions such as the handle ball joint, the same solution that is now adopted by the TOP of the range as the torches TPRO.

What is a WP17 TIG torch?

Weldcraft WP-17 A-150 TIG Torch (1 each) Whether you need a flexible TIG torch or a TIG torch with a valve Weldcraft has you covered. WP17 TIG torches are rated at 150 amps and are air-cooled. This Weldcraft TIG torch is covered with Miller’s True Blue 3 Year Warranty! … A-150 Valve Torch Body. Handle.

What is scratch start TIG?

The scratch start TIG welding arc is initiated by scratching the sharpened tungsten against the steel being welded. Similar to starting a stick arc, it is a quick scratch and then a lift to initiate the welding arc. … Once this is done, the welder pushes the foot pedal or switch to initiate the arc.

Article first time published on

How far can you extend your tungsten beyond the cup?

You can use gas lenses to weld all materials is you want; they also allow you to stick your tungsten up to 1” out of the cup by increasing gas flow. Sometimes you need to extend it just to reach a tight spot.

What is a water cooled TIG torch?

Weldcraft Water-Cooled Torches are ideal for welding amperages above 200 amps at a high duty cycle. The compact torch design is ergonomic and easy to work with, allowing for precise control of the arch to create exceptional welds even the most difficult applications.

What is the smallest TIG torch?

MR70 MICRO TORCH™ GAS COOLED The Micro Torch is the smallest and most versatile TIG torch on the market! These torches come complete with kit and accessories to help make your job easier.

How are GTAW torches rated?

What is up with the numbering system of tig torches? A small air cooled tig torch rated for 125 amps is called a #9 style. The same size torch in a water cooled model is a #20 style torch and its usually good for 250 amps. The same size torch in a water cooled model is a #18 and its usually rated around 350 amps.

Why is my TIG torch getting hot?

Running a torch beyond its recommended amperage rating can cause it to overheat. … Lack of sufficient gas flow (air-cooled torches) or water flow (water-cooled torches) will result in an under-cooled torch. Using a power cable gauge that is too low will cause the wire to heat up and melt.

Are CK TIG torches good?

Our standard line of TIG torches are high-quality adaptations of the industry classic torches, made by The Linde Group, such as the 9, 17, 18, 20, 24, and 26 styles. … MasterTIG torches are the highest quality TIG torches available on the market as they include the most cuttingedge designs created by CK Worldwide.

Can you use a water cooled TIG torch without water?

Do not try to use your water cooled torch without running water through it or you will burn it up even at very low amps. An air cooled torch is made with a heat sink to dissipate the heat for cooling. The water cooled torch does not have that.

What does Wp stand for in TIG welding?

Gas tungsten arc welding (GTAW), also known as tungsten inert gas (TIG) welding, is an arc welding process that uses a non-consumable tungsten electrode to produce the weld. The weld area and electrode are protected from oxidation or other atmospheric contamination by an inert shielding gas (argon or helium).

Can you TIG aluminum without high frequency?

Do you need a high frequency to TIG weld aluminum? – Quora. The short simple answer is for transformer type TIG welding machines and normal aluminum welding, yes you need continuous HF stabilization in conjunction with and adjustable AC waveform.

What does lift arc TIG mean?

Lift-Arc™ is a method of starting the arc when TIG welding that enables the operator to touch the tungsten to the work piece, lift it off the work piece, and then have full welding current begin flowing.

Can you TIG weld aluminum with a DC TIG welder?

DC GTAW can work very well on aluminum, so don’t be afraid to try it. Just be aware that the technique is different than that used for AC.

How far should the tungsten electrode be sticking out of a number 7 ceramic cup?

As a general rule, I would have around 5-6mm of the Tungsten sticking out of the Ceramic Gas Shroud. The important thing is that gas shield integrity around the arc is maintained.

What is an advantage of a water cooled TIG torch?

You’ll enjoy improved control of your weld and increased arc time. The consumables will last longer as well since the nozzle, tip and/or gas lens benefit from the water cooling along with the torch body. And best of all your hands will benefit from the improved cooling capacity as well.

Can you use antifreeze in TIG cooler?

Salty, Distilled water is factory recommended for temperate climates. Hooda, green and other auto antifreezes have a problem with “robbing” HF, making starts more difficult. RV or the stuff made for tig coolers is the only recommended product.

What is an advantage of liquid cooled torches compared to gas cooled torches?

Water-cooled welding torches use a radiator cooling system to circulate coolant, ambient air, and shielding gas in order to expel heat from the torch. Cables for water-cooled torches contain less copper than air-cooled, making them lighter and more flexible to work with.

How do you prevent undercut in TIG welding?

Start with a small reduction, and then go from there. Another reason for undercut is that your filler wire is being fed too slow. Not adding enough material to your weld results in undercut quite often.

How long does it take to get good at TIG welding?

The minimum time to learn to TIG weld is probably around 40 hours and that’s just becoming OK at it. I can teach someone to MIG weld in a couple of hours and stick weld in about 6 or 8 hours and they would be passable. Also, TIG welding is something you need to do on a fairly regular basis.

What type of electrode is used in TIG welding?

Tungsten Inert Gas (TIG) welding, also known as Gas Tungsten Arc Welding (GTAW) is an arc welding process that produces the weld with a non-consumable tungsten electrode.

What is micro TIG welding?

Micro TIG welders are also known as Pulse-arc welders. Pulse-Arc welding or micro TIG welding uses electrical energy to create a plasma discharge. The high-temperature plasma, in turn, melts metal in a small spot. This process takes place in milliseconds.
